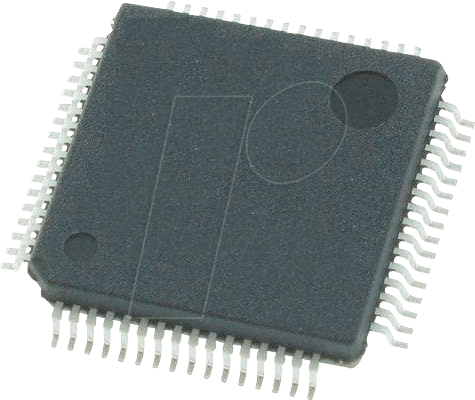

STM32F103R4T6A – ARM®Cortex®-M3 Mikrocontroller, 32-Bit, 2V, 16 KB, LQFP-64

The STM32F103x4 performance line family incorporates the high-performance ARM®Cortex®-M3 32-bit RISC core operating at a 72 MHz frequency, high-speed embedded memories (Flash memory up to 32 Kbytes and SRAM up to 6 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses. All devices offer two 12-bit ADCs, three general purpose 16-bit timers plus one PWM timer, as well as standard and advanced communication interfaces: up to two I2Cs and SPIs, three USARTs, an USB and a CAN.The devices operate from a 2.0 to 3.6 V power supply. They are available in both the –40 to +85 °C temperature range and the –40 to +105 °C extended temperature range. A comprehensive set of power-saving mode allows the design of low-power applications.The STM32F103x4 low-density performance line family includes devices in different package types. Depending on the device chosen, different sets of peripherals are included, the description below gives an overview of the complete range of peripherals proposed in this family.These features make the STM32F103xx low-density performance line microcontroller family suitable for a wide range of applications such as motor drives, application control, medical and handheld equipment, PC and gaming peripherals, GPS platforms, industrial applications, PLCs, inverters, printers, scanners, alarm systems, video intercoms, and HVACs.Key FeaturesARM®32-bit Cortex®-M3 CPU Core-72 MHz maximum frequency,1.25 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state memory access-Single-cycle multiplication and hardware divisionMemories-16 or 32 Kbytes of Flash memory-6 or 10 Kbytes of SRAMClock, reset and supply management-2.0 to 3.6 V application supply and I/Os-POR, PDR, and programmable voltage detector (PVD)-4-to-16 MHz crystal oscillator-Internal 8 MHz factory-trimmed RC-Internal 40 kHz RC-PLL for CPU clock-32 kHz oscillator for RTC with calibrationLow-power-Sleep, Stop and Standby modes-VBAT supply for RTC and backup registers2 x 12-bit, 1 µs A/D converters (up to 16 channels)-Conversion range: 0 to 3.6 V-Dual-sample and hold capability-Temperature sensorDMA-7-channel DMA controller-Peripherals supported: timers, ADC, SPIs, I2Cs and USARTsUp to 51 fast I/O ports-26/37/51 I/Os, all mappable on 16 external interrupt vectors and almost all 5 V-tolerantDebug mode-Serial wire debug (SWD) & JTAG interfaces6 timers-Two 16-bit timers, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input-16-bit, motor control PWM timer with dead-time generation and emergency stop-2 watchdog timers (Independent and Window)-SysTick timer 24-bit downcounter6 communication interfaces-Up to 1 x I2C interfaces (SMBus/PMBus)-2x USARTs (ISO 7816 interface, LIN, IrDA capability, modem control-1x SPIs (18 Mbit/s)-CAN interface (2.0B Active)-USB 2.0 full-speed interfaceCRC calculation unit, 96-bit unique IDPackages are ECOPACK®
