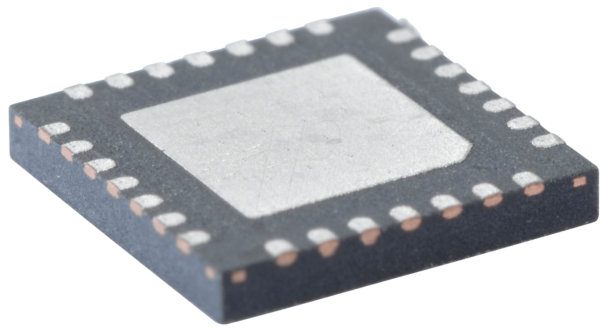

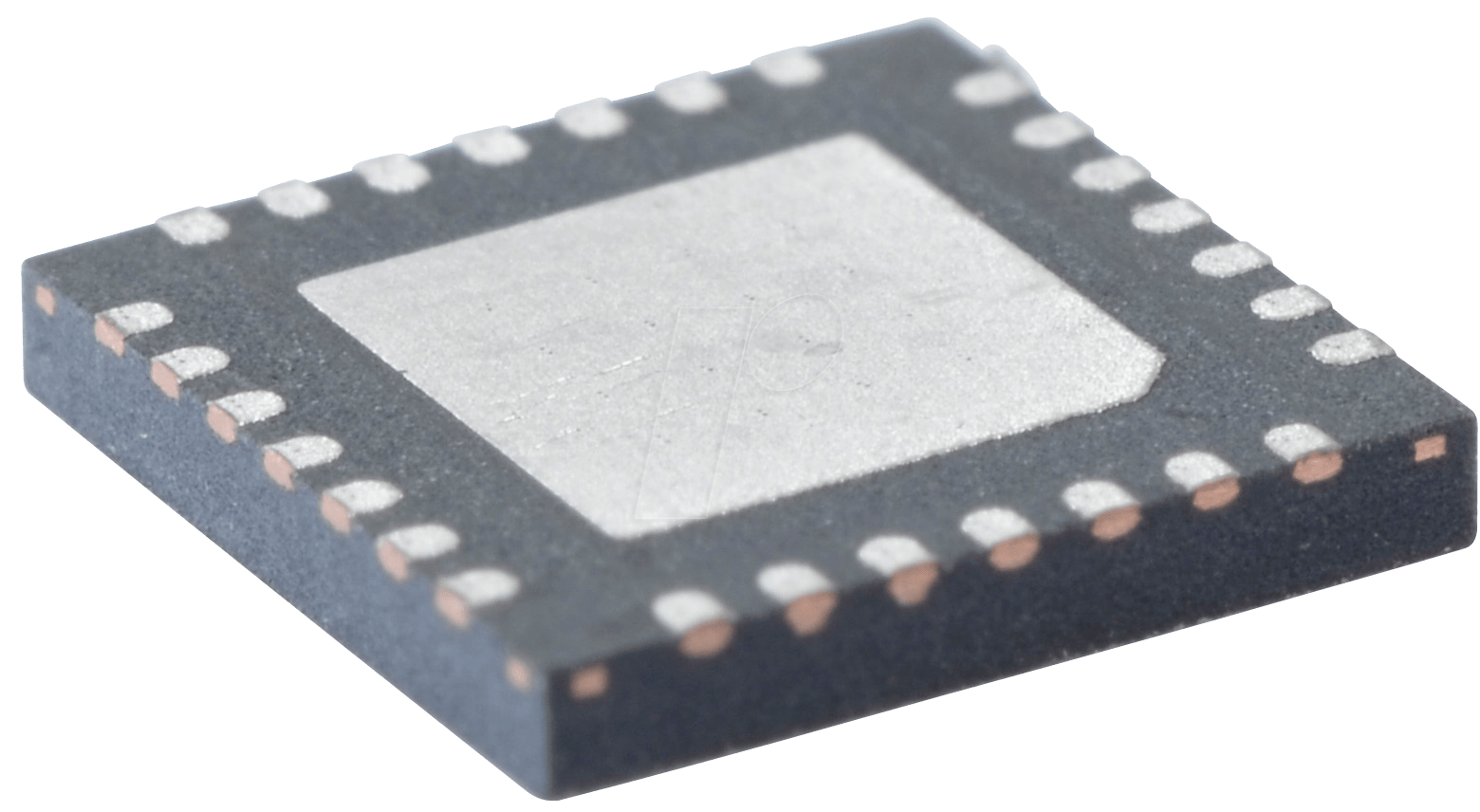

MGC 3130-I/MQ – 3D-Tracking, Regler, QFN-28

The MGC3130 is the world’s first electrical-field (E-field) based three-dimensional (3D) tracking and gesture controller. The chip is based on Microchip’s patented GestIC® technology and enables user command input with natural hand and finger movements in free-space. The GestIC Colibri Suite is processed on-chip and enables a wide range of gesture applications shortening development cycles of developers. Through its configurable sensing states mobile friendly power consumption as low as 150 microwatts can be realized. • Sensing Type: E-Field • Detection Range: 0 to 15cm • Resolution: 150 dpi • Package Type: 28-pin 5x5mm QFN • Operating Temperature Range: -20C to 85C • Digital Signal Processing Unit: 32-bit
