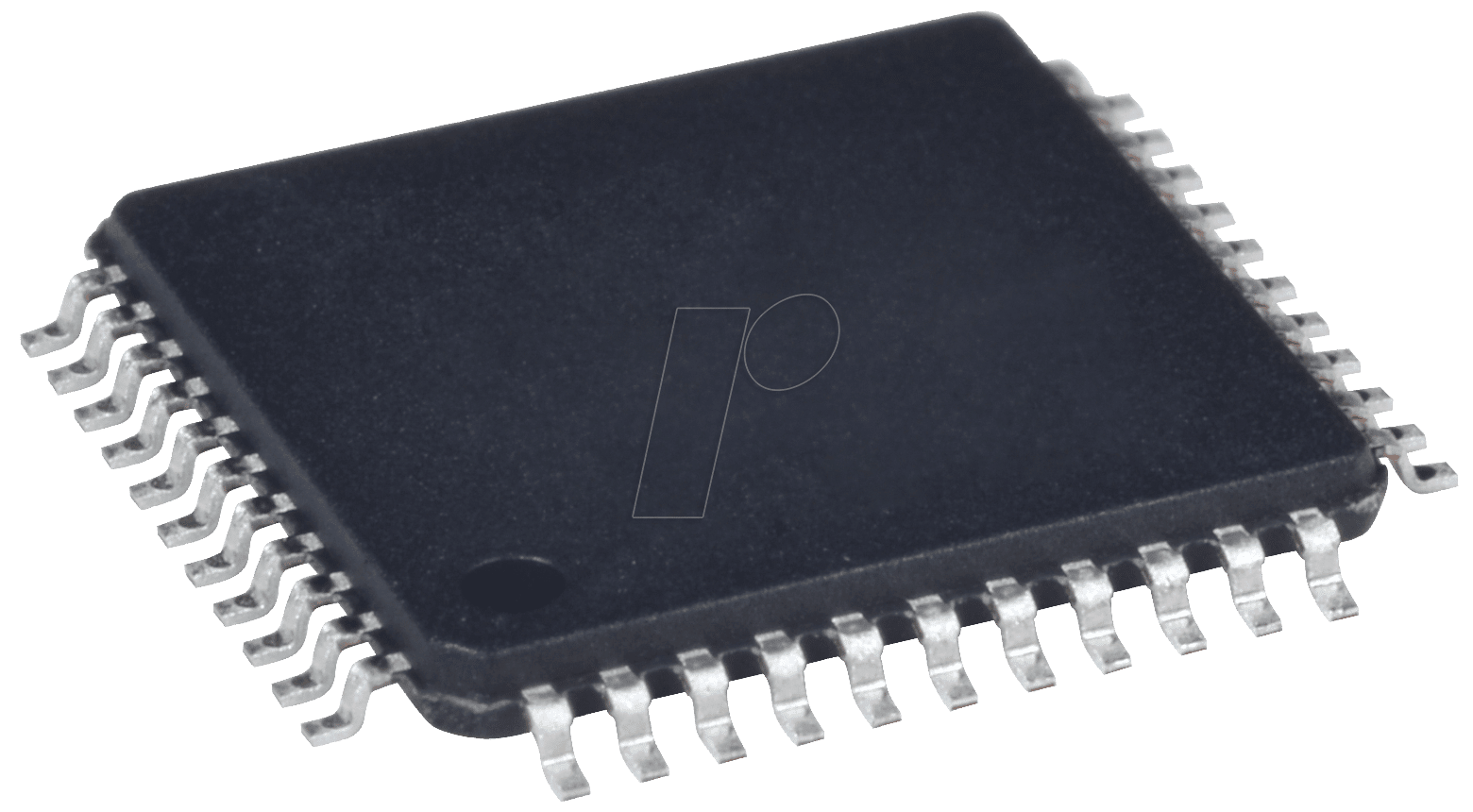

32MX270F256D50PT – MIPS32 M4K® Mikrocontroller, 32-bit, 2,3-3,6V, 256 KB, TQFP-44

• Up to 50 MHz/83 DMIPS, 32-bit RISC CPU with 0.5 mA/MHz current consumption (Typical)• Two I2S/SPI modules for Codec and serial communications• Peripheral Pin Select (PPS) functionality• Parallel Master Port (PMP) for graphics interfaces• Charge Time Measurement Unit (CTMU)• Supports mTouchTM Capacitive touch buttons and sliders• Provides high-resolution time measurement (1 ns)• On-chip temperature measurement capabilityPeripheral Features• Peripheral Pin Select (PPS) functionality• Up to 4 channels of hardware DMA with automatic data size detection• Two UART and I2C modules• Separate PLLs for CPU and USB clocks• Hardware Real-Time Clock and Calendar (RTCC)• Five 16-bit Timers/Counters (two 16-bit pairs combine to create two 32-bit timers)• Five Capture inputs and Five Compare/PWM outputs Technical Data: Max Speed MHz: 50Program Memory Size (KB): 256RAM (KB): 64Auxiliary Flash (KB): 3Temperature Range: -40 … +105°COperating Voltage Range: 2.3 … 3.6 VCTMU: YesA/D channels: 13Input Capture: 516-bit Digital Timers: 5Parallel Port: PMPComparators: 3Internal Oscillator: 8 MHz, 32 kHzI/O Pins: 34Pin Count: 44
